China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

We consistently execute our spirit of ''Innovation bringing progress, Highly-quality ensuring subsistence, Administration advertising and marketing gain, Credit history attracting buyers for Rolling Pants For Packing, Folding Mat For Clothes, Folder Clothes, We acquire high-quality as the foundation of our results. Thus, we focus over the manufacture on the finest top quality goods. A strict quality management system has been created to guarantee the caliber of the merchandise.
China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL Detail:

LABEL SIZE:

Length:6-250mmWidth:20-160mm

APPLICABE DIMENSIONS:

Length: 40-400mmWidth: 40-200mm
Height: 0.2-150mm

POWER:

220V/50HZ

BUSINESS TYPE:

Supplier, Factory, Manufacture

MATERIAL:

Stainless Steel

LABEL SPEED:

40-150pcs/min

DRIVEN TYPE:

Electric

AUTOMATIC GRADE:

Automatic

Basic Application

UBL-T-300-3

UBL-T-300 Function introduction: Suitable for automatic labeling of flat products. Such as Bottle caps, wipes cover, lying square bottles, mobile phone cases, color boxes, cartons, square boxes, plastic sheets, folders, tin boxes, egg boxes, plastic bags, Tablet oral liquid etc.

High precision, no bubble film; have the automatic identification function is enabled automatically according to the different products with different label head work.

Core working principle: The sensor detects the signal to return products after labeling control system, signal processed by PLC, posted at the appropriate time send label attached to the product set position, products covered through the calibration device, label coated firmly, a label attached to complete action.

Technical Parameter

UBL-T-300-2

The technical parameters of the standard model are shown as follows.

Customization is available if there are any particular requirements of functions

TAG: flat surface label applicator,  flat surface labeling machine

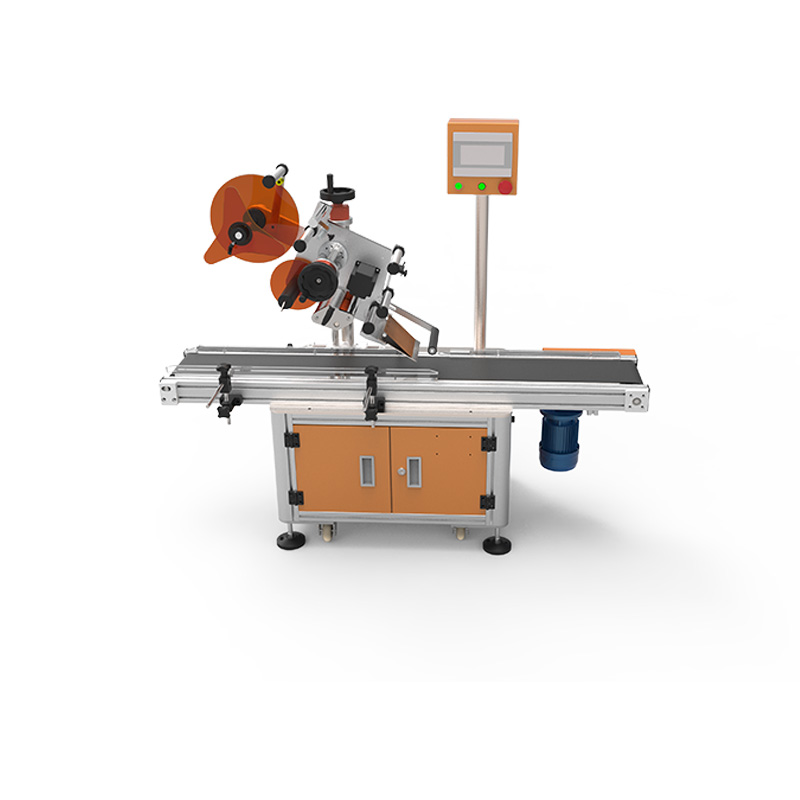

Flat labeling machine
Type UBL-T-300
Label Quantity One label at a time
Accuracy ±1mm
Speed 30~150pcs/min
Label size Length6~250mm;Width20~160mm
Product size Length40~400mm;Width40~200mm;Height0.2~100mm
Label requirement Roll label;Inner dia 76mm;Outside roll≦250mm
Machine size and weight L1600*W780*H1400mm; 180Kg
Power AC 220V ; 50/60HZ
Additional features  1.Can add the ribbon coding machine
2.Can add transparent sensor3.Can add inkjet printer or laser printer;
  barcode printer
4.Can add label heads
Configuration PLC control;
Have sensor;
Have touch screen;
Have conveyor belt

Our Services

Characteristics of Function:

Optional ribbon code printer can print production date and batch number, and reduce the bottle packaging procedure to boost production efficiency.

Optional automatic turntable machine can be directly connected to the front end of the production line, feeding bottle into the labeling machine automaticlly

Optional hot-stamping coder or inkjet coder

Automatic feeding function (according to the product)

Automatic collecting (according to the product)

Additional labeling equipment

Circumferential labeling through positioning

Other functions (according to the customer’s requirements).


Product detail pictures:

China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL detail pictures

China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL detail pictures

China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL detail pictures

China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL detail pictures

China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL detail pictures

China Wholesale Bottle Labeler Quotes - Flat labeling machine – UBL detail pictures
